The goal of osmactive is to provide functions, example datasets and documentation for extracting active travel infrastructure from OpenStreetMap data.
Install the package with:
remotes::install_github("nptscot/osmactive")
library(osmactive)
library(tmap) # for mapping
library(dplyr) # for data manipulation
library(sf) # for spatial dataAlternatively, you can load the package with the following for local development:
devtools::load_all()Minimal example
The package comes with example data for testing functions. You can test the functions as follows:
osm = osm_edinburgh
cycle_net = get_cycling_network(osm)
drive_net = get_driving_network(osm)
drive_net_major = get_driving_network(osm)
cycle_net = distance_to_road(cycle_net, drive_net)
cycle_net = classify_cycle_infrastructure(cycle_net)
table(cycle_net$detailed_segregation)
#>
#> Level track Mixed Traffic Street Off Road Path
#> 15 1 3
#> Painted Cycle Lane
#> 2
table(cycle_net$cycle_segregation)
#>
#> Segregated Track (wide) Off Road Path Segregated Track (narrow)
#> 7 4 4
#> Shared Footway Painted Cycle Lane
#> 4 2You can also create plots with the packaged plot_osm_tmap() function:
m = plot_osm_tmap(cycle_net)
m
Estimate the ‘level of service’ of cycle infrastructure:
cycle_net_los = level_of_service(cycle_net)
table(cycle_net_los$`Level of Service`)
#>
#> High
#> 13
#> Medium
#> 8
#> Low
#> 0
#> Should not be used (mixed traffic)
#> 0
#> Should not be used (non-compliant intervention)
#> 0
plot(cycle_net_los["Level of Service"])
Use any plotting code you like:
Running as a shiny app
shiny::runApp("code/app.R")Leeds example
osm = get_travel_network("Leeds")
#> Reading layer `lines' from data source `/data/bronze/osm/bbbike_Leeds.gpkg' using driver `GPKG'
#> Simple feature collection with 175051 features and 67 fields
#> Geometry type: LINESTRING
#> Dimension: XY
#> Bounding box: xmin: -1.889999 ymin: 53.65 xmax: -1.280002 ymax: 53.88
#> Geodetic CRS: WGS 84
cycle_net = get_cycling_network(osm)
drive_net = get_driving_network(osm)
cycle_net_d = distance_to_road(cycle_net, drive_net)
cycle_net_c = classify_cycle_infrastructure(cycle_net_d)
m = plot_osm_tmap(cycle_net_c)
m
Edinburgh example
osm = get_travel_network("Edinburgh")
#> Reading layer `lines' from data source `/data/bronze/osm/bbbike_Edinburgh.gpkg' using driver `GPKG'
#> Simple feature collection with 225097 features and 67 fields
#> Geometry type: LINESTRING
#> Dimension: XY
#> Bounding box: xmin: -3.579998 ymin: 55.7 xmax: -2.77 ymax: 56.1
#> Geodetic CRS: WGS 84
cycle_net = get_cycling_network(osm)
drive_net = get_driving_network(osm)
cycle_net = distance_to_road(cycle_net, drive_net)
cycle_net = classify_cycle_infrastructure(cycle_net)
m = plot_osm_tmap(cycle_net)
m
Dublin example
dublin_zones = zonebuilder::zb_zone("Dublin")
dublin_6km = dublin_zones |>
filter(circle_id <= 3) |>
sf::st_union()
osm = get_travel_network("Republic of Ireland", boundary = dublin_6km, boundary_type = "clipsrc")
#> 0...10...20...30...40...50...60...70
#> ...80...90...100 - done.
#> Reading layer `lines' from data source
#> `/data/bronze/osm/geofabrik_ireland-and-northern-ireland-latest.gpkg'
#> using driver `GPKG'
#> Simple feature collection with 57406 features and 67 fields
#> Geometry type: MULTILINESTRING
#> Dimension: XY
#> Bounding box: xmin: -6.350653 ymin: 53.29547 xmax: -6.170875 ymax: 53.40329
#> Geodetic CRS: WGS 84
cycle_net = get_cycling_network(osm)
drive_net = get_driving_network(osm)
cycle_net = distance_to_road(cycle_net, drive_net)
cycle_net = classify_cycle_infrastructure(cycle_net)
m = plot_osm_tmap(cycle_net)
m
Lisbon example
u = "https://ushift.tecnico.ulisboa.pt/content/data/lisbon_limit.geojson"
f = basename(u)
if (!file.exists(f)) download.file(u, f)
lisbon = sf::read_sf(f)
lisbon = lisbon |>
sf::st_cast("POLYGON")
osm = get_travel_network("Portugal", boundary = lisbon, boundary_type = "clipsrc", force_vectortranslate = TRUE)
#> 0...10...20...30...40...50...60...70..
#> .80...90...100 - done.
#> Reading layer `lines' from data source
#> `/data/bronze/osm/geofabrik_portugal-latest.gpkg' using driver `GPKG'
#> Simple feature collection with 53724 features and 67 fields
#> Geometry type: MULTILINESTRING
#> Dimension: XY
#> Bounding box: xmin: -9.229835 ymin: 38.6914 xmax: -9.087336 ymax: 38.79747
#> Geodetic CRS: WGS 84
cycle_net = get_cycling_network(osm)
drive_net = get_driving_network(osm)
cycle_net = distance_to_road(cycle_net, drive_net)
cycle_net = classify_cycle_infrastructure(cycle_net)
m = plot_osm_tmap(cycle_net)
m
London
london = zonebuilder::zb_zone("Southwark Station", n_circles = 1)
london = sf::st_union(london) |>
sf::st_make_valid()
osm = get_travel_network(london, boundary = london, boundary_type = "clipsrc")
#> 0...10...20...30...40...50...60...70...80...90..
#> .100 - done.
#> Reading layer `lines' from data source
#> `/data/bronze/osm/geofabrik_greater-london-latest.gpkg' using driver `GPKG'
#> Simple feature collection with 6358 features and 67 fields
#> Geometry type: MULTILINESTRING
#> Dimension: XY
#> Bounding box: xmin: -0.1189676 ymin: 51.4957 xmax: -0.09016682 ymax: 51.51368
#> Geodetic CRS: WGS 84
cycle_net = get_cycling_network(osm)
drive_net = get_driving_network(osm)
cycle_net = distance_to_road(cycle_net, drive_net)
cycle_net = classify_cycle_infrastructure(cycle_net)
m = plot_osm_tmap(cycle_net)
m
Cambridge
cambridge = zonebuilder::zb_zone("Cambridge")
cambridge = sf::st_union(cambridge) |>
sf::st_make_valid()
osm = get_travel_network("Cambridge", boundary = cambridge, boundary_type = "clipsrc")
#> 0...10...20...30...40...50...60...70...80...90...100 - done.
#> Reading layer `lines' from data source `/data/bronze/osm/bbbike_Cambridge.gpkg' using driver `GPKG'
#> Simple feature collection with 50436 features and 67 fields
#> Geometry type: MULTILINESTRING
#> Dimension: XY
#> Bounding box: xmin: -0.0399984 ymin: 52.12 xmax: 0.319972 ymax: 52.28
#> Geodetic CRS: WGS 84
cycle_net = get_cycling_network(osm)
drive_net = get_driving_network(osm)
cycle_net = distance_to_road(cycle_net, drive_net)
cycle_net = classify_cycle_infrastructure(cycle_net)
m = plot_osm_tmap(cycle_net)
m
Bristol example
osm = get_travel_network("Bristol")
#> Reading layer `lines' from data source
#> `/data/bronze/osm/geofabrik_bristol-latest.gpkg' using driver `GPKG'
#> Simple feature collection with 43775 features and 67 fields
#> Geometry type: LINESTRING
#> Dimension: XY
#> Bounding box: xmin: -4.926309 ymin: 50.99307 xmax: -2.402599 ymax: 51.73086
#> Geodetic CRS: WGS 84
cycle_net = get_cycling_network(osm)
drive_net = get_driving_network(osm)
cycle_net = distance_to_road(cycle_net, drive_net)
cycle_net = classify_cycle_infrastructure(cycle_net)
m = plot_osm_tmap(cycle_net)
m
Christchurch
library(sf)
zones = zonebuilder::zb_zone("Christchurch")
zones_6km = zones |>
dplyr::filter(circle_id <= 3) |>
sf::st_union()
# mapview::mapview(zones_6km)
osm = get_travel_network("New Zealand", boundary = zones_6km, boundary_type = "clipsrc", force_vectortranslate = TRUE, force_download = TRUE)
#> | | | 0% | | | 1% | |= | 1% | |= | 2% | |== | 2% | |== | 3% | |== | 4% | |=== | 4% | |=== | 5% | |==== | 5% | |==== | 6% | |===== | 6% | |===== | 7% | |===== | 8% | |====== | 8% | |====== | 9% | |======= | 9% | |======= | 10% | |======= | 11% | |======== | 11% | |======== | 12% | |========= | 12% | |========= | 13% | |========= | 14% | |========== | 14% | |========== | 15% | |=========== | 15% | |=========== | 16% | |============ | 16% | |============ | 17% | |============ | 18% | |============= | 18% | |============= | 19% | |============== | 19% | |============== | 20% | |============== | 21% | |=============== | 21% | |=============== | 22% | |================ | 22% | |================ | 23% | |================ | 24% | |================= | 24% | |================= | 25% | |================== | 25% | |================== | 26% | |=================== | 26% | |=================== | 27% | |=================== | 28% | |==================== | 28% | |==================== | 29% | |===================== | 29% | |===================== | 30% | |===================== | 31% | |====================== | 31% | |====================== | 32% | |======================= | 32% | |======================= | 33% | |======================= | 34% | |======================== | 34% | |======================== | 35% | |========================= | 35% | |========================= | 36% | |========================== | 36% | |========================== | 37% | |========================== | 38% | |=========================== | 38% | |=========================== | 39% | |============================ | 39% | |============================ | 40% | |============================ | 41% | |============================= | 41% | |============================= | 42% | |============================== | 42% | |============================== | 43% | |============================== | 44% | |=============================== | 44% | |=============================== | 45% | |================================ | 45% | |================================ | 46% | |================================= | 46% | |================================= | 47% | |================================= | 48% | |================================== | 48% | |================================== | 49% | |=================================== | 49% | |=================================== | 50% | |=================================== | 51% | |==================================== | 51% | |==================================== | 52% | |===================================== | 52% | |===================================== | 53% | |===================================== | 54% | |====================================== | 54% | |====================================== | 55% | |======================================= | 55% | |======================================= | 56% | |======================================== | 56% | |======================================== | 57% | |======================================== | 58% | |========================================= | 58% | |========================================= | 59% | |========================================== | 59% | |========================================== | 60% | |========================================== | 61% | |=========================================== | 61% | |=========================================== | 62% | |============================================ | 62% | |============================================ | 63% | |============================================ | 64% | |============================================= | 64% | |============================================= | 65% | |============================================== | 65% | |============================================== | 66% | |=============================================== | 66% | |=============================================== | 67% | |=============================================== | 68% | |================================================ | 68% | |================================================ | 69% | |================================================= | 69% | |================================================= | 70% | |================================================= | 71% | |================================================== | 71% | |================================================== | 72% | |=================================================== | 72% | |=================================================== | 73% | |=================================================== | 74% | |==================================================== | 74% | |==================================================== | 75% | |===================================================== | 75% | |===================================================== | 76% | |====================================================== | 76% | |====================================================== | 77% | |====================================================== | 78% | |======================================================= | 78% | |======================================================= | 79% | |======================================================== | 79% | |======================================================== | 80% | |======================================================== | 81% | |========================================================= | 81% | |========================================================= | 82% | |========================================================== | 82% | |========================================================== | 83% | |========================================================== | 84% | |=========================================================== | 84% | |=========================================================== | 85% | |============================================================ | 85% | |============================================================ | 86% | |============================================================= | 86% | |============================================================= | 87% | |============================================================= | 88% | |============================================================== | 88% | |============================================================== | 89% | |=============================================================== | 89% | |=============================================================== | 90% | |=============================================================== | 91% | |================================================================ | 91% | |================================================================ | 92% | |================================================================= | 92% | |================================================================= | 93% | |================================================================= | 94% | |================================================================== | 94% | |================================================================== | 95% | |=================================================================== | 95% | |=================================================================== | 96% | |==================================================================== | 96% | |==================================================================== | 97% | |==================================================================== | 98% | |===================================================================== | 98% | |===================================================================== | 99% | |======================================================================| 99% | |======================================================================| 100%
#> 0...10...20...30...40...50...60...70...80
#> ...90...100 - done.
#> Reading layer `lines' from data source
#> `/data/bronze/osm/geofabrik_new-zealand-latest.gpkg' using driver `GPKG'
#> Simple feature collection with 52558 features and 67 fields
#> Geometry type: MULTILINESTRING
#> Dimension: XY
#> Bounding box: xmin: 172.5622 ymin: -43.58494 xmax: 172.7107 ymax: -43.47698
#> Geodetic CRS: WGS 84
# osm = get_travel_network("New Zealand")
# osm = osm[zones_6km, , op = sf::st_within]
dim(osm)
#> [1] 52558 69
cycle_net = get_cycling_network(osm)
drive_net = get_driving_network(osm)
cycle_net = distance_to_road(cycle_net, drive_net)
cycle_net = classify_cycle_infrastructure(cycle_net)
summary(cycle_net$cycle_segregation)
#> Segregated Track (wide) Off Road Path Segregated Track (narrow)
#> 8 915 526
#> Shared Footway Painted Cycle Lane
#> 1395 1605

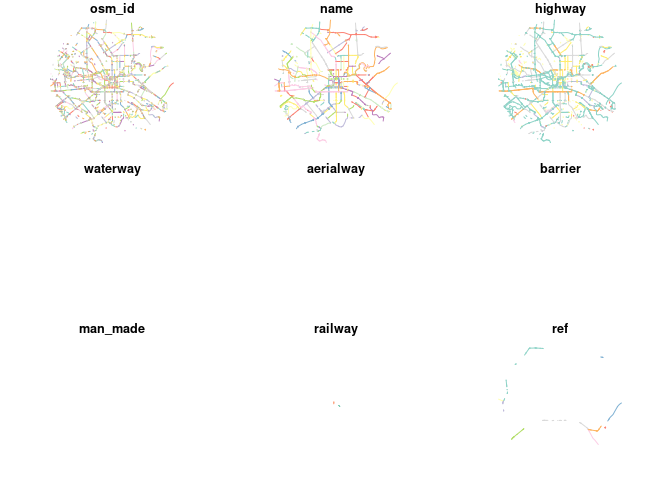

plot(cycle_net)

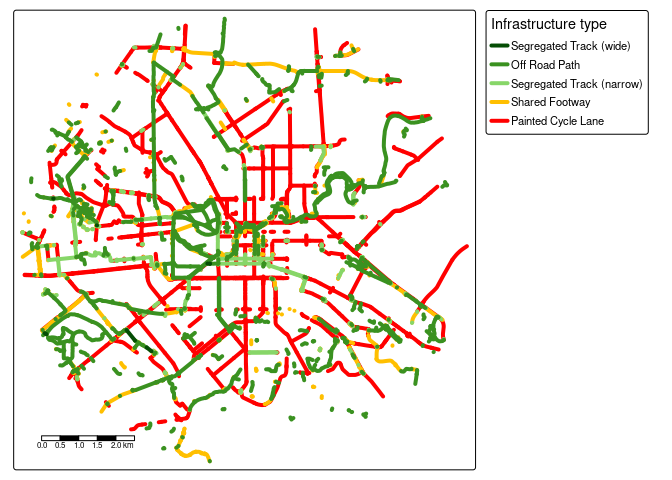

m = plot_osm_tmap(cycle_net)
m
